Technologies

• Andros™ Stem

  Adjust to fit

  The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.



  Close
• Atlas V Rack

  With structural cues from the heavy-duty Tern GSD, the new Atlas V Rack has been massively strengthened and increased in size, with a load capacity of 27 kg (59 lb). This reduces flex for more secure handling when the bike is loaded. Riding with your little one? Add a Thule Yepp Maxi or Dash® RM child seat—no adapters needed. The Atlas V Rack is also KLICKfix-compatible, and can hold panniers of different sizes—including the Bucketload Pannier, which was designed to fit every configuration of the Vektron.

  Close

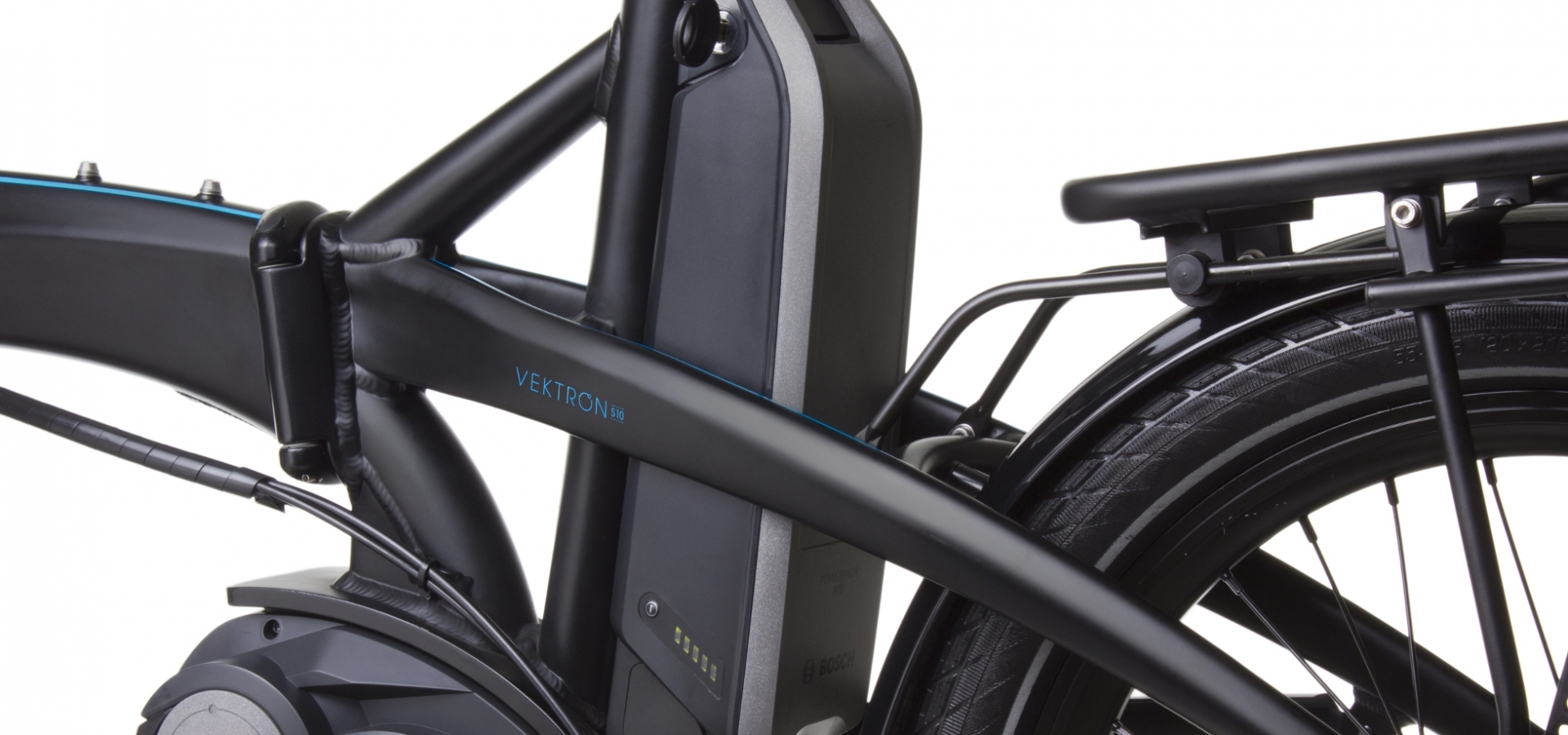

• Bosch PowerPack Battery

  Feather-light powerhouse

  This impressive high-energy, high-power cell carries 300 watt-hours (Wh) of power in the EU, and 400 Wh in the U.S. The best-in-class design charges fast—from zero—in only 2.5 to 3.5 hours, and lets you ride longer and further between charges. You’ll be impressed by its long lifespan, light weight, and ease of charging.



  Close
• Bosch Purion Control Panel

  Compact control center

  The on-board computer lets you switch between five different riding modes, and feeds you handy information like speed, battery level, and distance. It optimizes shifting actions and constantly updates you on the remaining range, just like a typical German car. Best of all, it’s now more compact and robust than ever.



  Close
• Bosch® Active Line Plus

  With a little more torque for smoother acceleration, the Bosch Active Line Plus drive unit can take you up to 25 km per hour (20 mph in the U.S.) and operates dependably—day in and day out. The new generation of the Active Line Plus is also 20% lighter and 25% smaller than the previous one, maintaining its excellent performance and low-levels of vibration while delivering an even quieter ride with less pedal resistance.

  Close
• Physis™ 3D Handlepost

  The new benchmark

  Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.



  Close
• Shimano Hydraulic Disc Brakes

  Stop on demand

  Leveraging technology that’s been working successfully on motorcycles for decades, these brakes will bring you to a confident stop—even in rain, snow, or mud. All it takes is the gentle pull of just two fingers. The caliper design is both ridged and durable, and the non-corrosive mineral oil brake fluid is gentler on the environment than most hydraulic brake fluids.



  Close
• Shimano® Alivio Shadow Derailleur

  For most cities, the resilient 9-speed Alivio Shadow derailleur is all you really need—with the added benefit of keeping everything tucked away for extra protection, which comes in handy when you need to transport your folded bike.

  Close

Technical description

• Frame

  Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
• Fork

  Tern Tarsus, 6061-Al, hydroformed
• Engine

  Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU)
• Battery

  Bosch PowerPack 400 Wh
• Displey

  Bosch Purion, 4 mode selectable, walk assist
• Charger

  220V, 4A (EU)
• Range

  400 Wh: 55 -110 km
• Rear derailleur (rear shifter)

  Shimano Alivio Shadow
• Gear change

  Shimano Alivio, 1 x 9 spd, trigger
• front brake

  Shimano, hydraulic disc
• Rear brake

  Shimano, hydraulic disc
• Brake levers

  Shimano, hydraulic disc
• Crank

  Vektron custom, forged 6061-AL crankarm
• Bottom bracket

  Motor integrated
• Headset

  Tern Flux, cartridge bearings, Physis integrated
• Pedals

  MKS EZY
• Cartridge

  Shimano 11-32T, 9 spd
• Chain

  9 spd, DHT for eBike, GST corrosion resistant coating
• Number of speeds

  1 x 9
• Handlebars

  Flat bar, 6061-AL, Tern Andros adapted
• Stem

  Tern Andros, adjustable, forged construction, patented technology
• Seatpost

  Tern Telescope, 34.9/30.9 mm, 2014-AL, Seatpost Clamp: Tern Collar, 6061-AL, 2pc
• Saddle

  Tern Porter, patented GripPad design
• Grips

  Velo ergonomic, lock-on
• Front hub

  Shimano disc
• Rear hub

  Shimano disc
• Rims

  Kinetix Comp, for disc
• Tires

  Schwalbe Big Apple, 55-406, puncture protection, Reflex
• Front light

  Tern Valo Direct, 190 lumens
• Tail light

  Herrmans H-Trace, for eBike
• Wheel size

  20"
• Luggage carrier

  Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg
• Mudguards

  SplashGuard, stainless hardware
• Stand

  URSUS, rear mount
• Weight

  21.9 kg
• Maximum permissible load capacity

  125 kg (Max Rider Weight: 105 kg)
• Recommended height of rider

  147 - 195 cm
• BELL

  Aluminum

Other

• Product code

  N24002745
