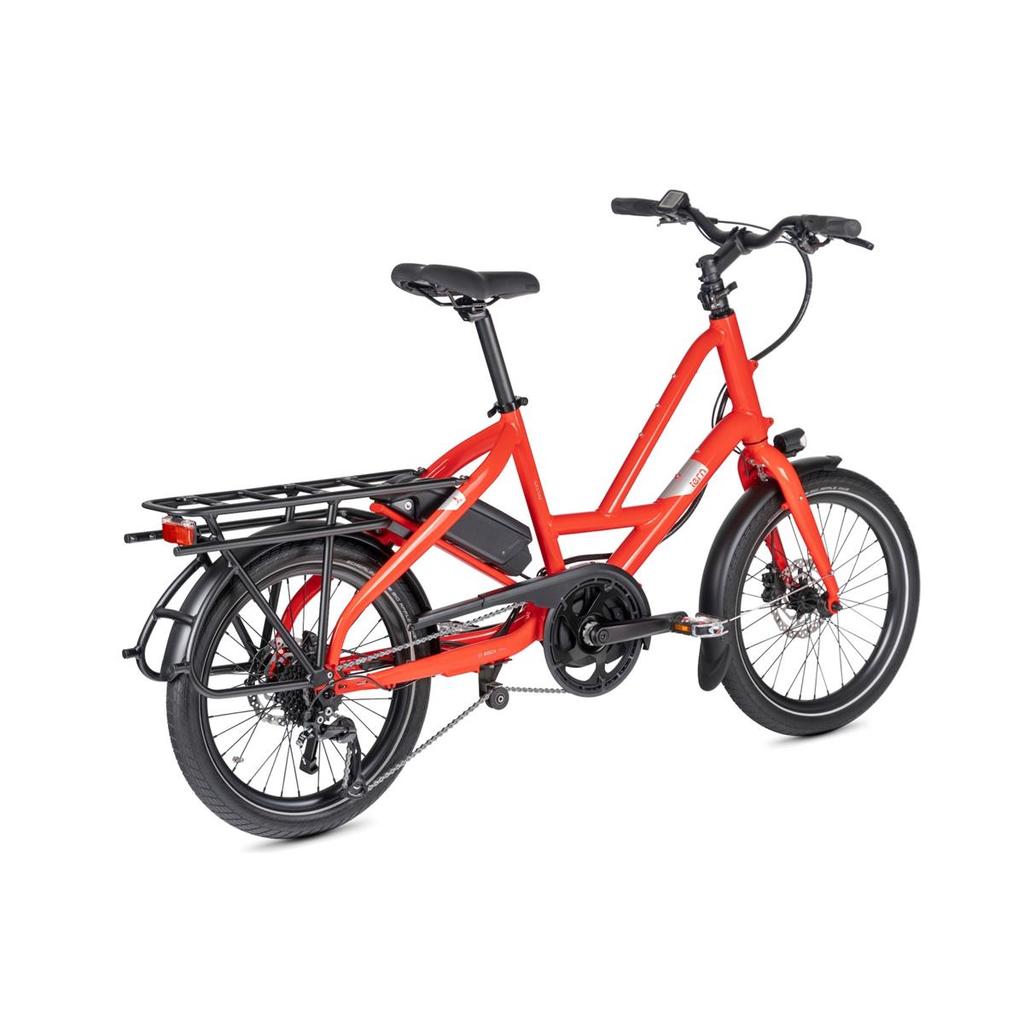

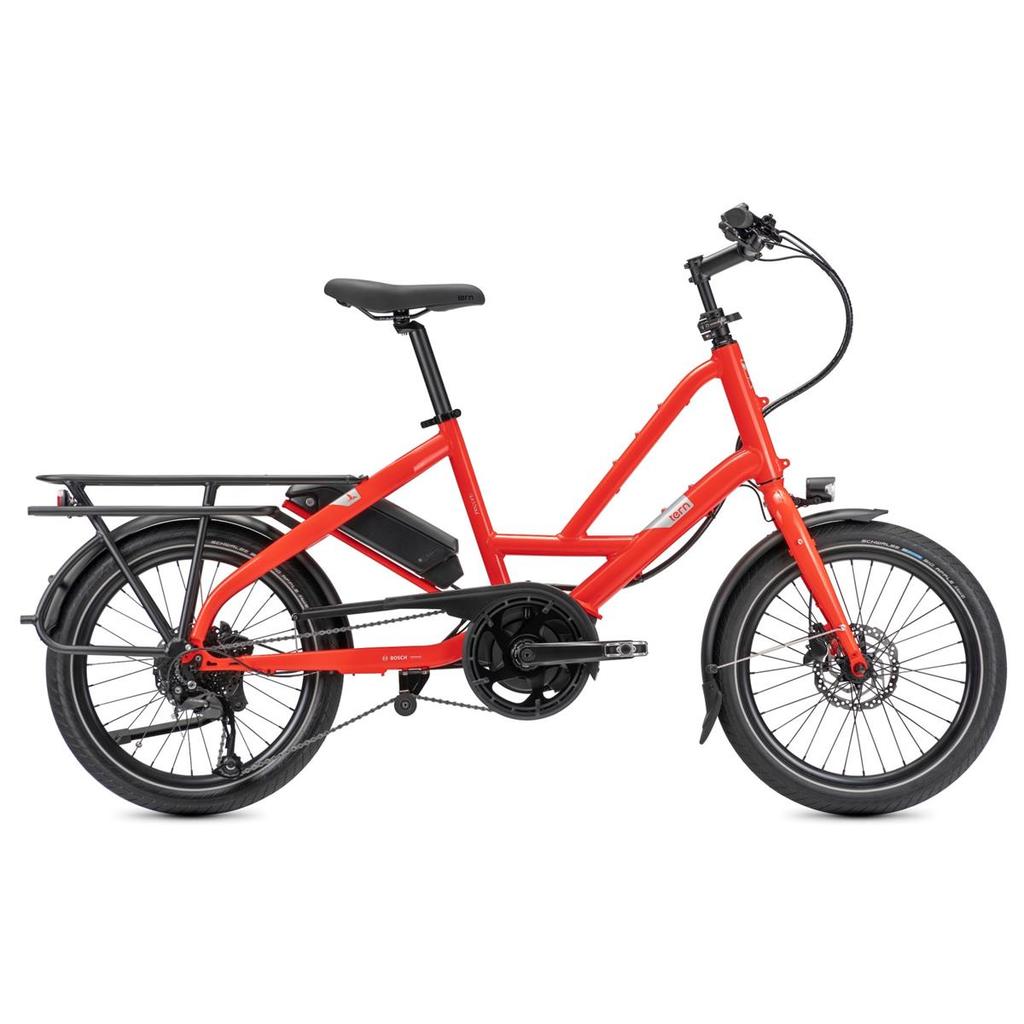

Electric bike Tern Quick Haul P9 Performance
The Quick Haul is a compact e-bike that can easily handle most daily rides around town. The maximum weight limit is already a hefty 150kg, and there's a comprehensive range of modular accessories available so you can customise it to suit you. Different settings allow you to carry cargo or even an extra passenger, whether it's a smaller adult, a child or a four-legged friend.
The whole family will benefit from the Quick Haul. The seatpost and stem are telescopic, so they can be adjusted in seconds (and without tools) for riders 150-195 cm tall.
Heavy duty & commercial fleets with the Tern Business initiative
As a compact, long-lasting e-bike, the Quick Haul is not only great for consumers who would like to use a bike more instead of a car, but it's also an excellent choice for commercial use. Its robust construction, large carrying capacity and modular design make it a reliable workhorse for all types of business.
- Bosch Performance Line Cruise motor provides up to 65 Nm of torque and 300% boost
- 1x9 speed drivetrain with Shimano Alivio shifting
- Load capacity: 50 kg on rear carrier plus an additional 20 kg with optional front carrier
- Suitable for riders 150 - 195 cm tall, with adjustable seatpost and Speedlifter stem (no tools required for adjustment)
- Plenty of accessories available for transporting children and cargo
- Ultra-low stand height of 490 mm makes it easy to mount and wait at stops
- Shimano hydraulic disc brakes for reliable stopping power - even under heavy loads and at fast speeds
- Proven safety and reliability: frame and forks are EFBE tested up to a maximum total weight of 150 kg
Procut classification
| For whom: | Men's / Unisex |
| Type: | Foldable, Urban |
Technical description
-

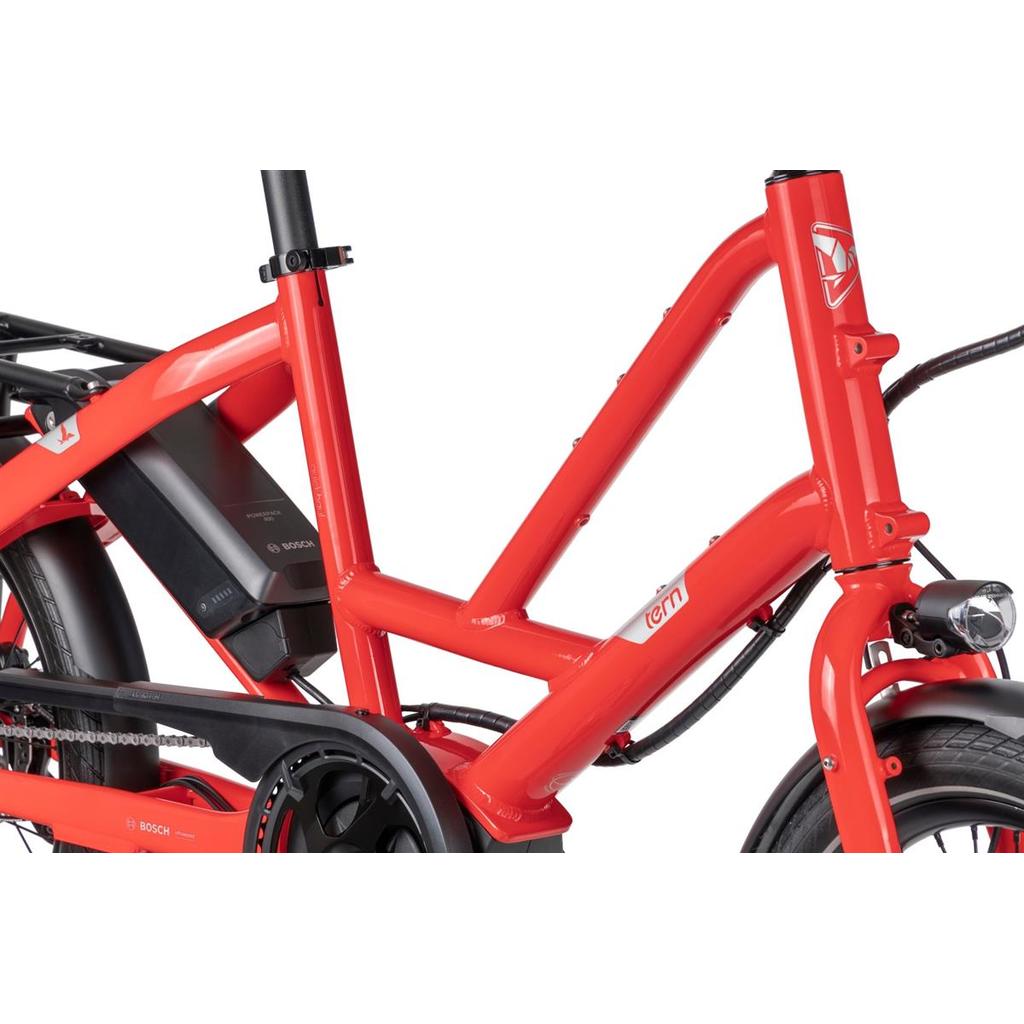

FRAME
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg -
Fork
Cargo, steel, EFBE approved: 150 kg -
Displey
Bosch Purion -
Engine
Bosch Performance -

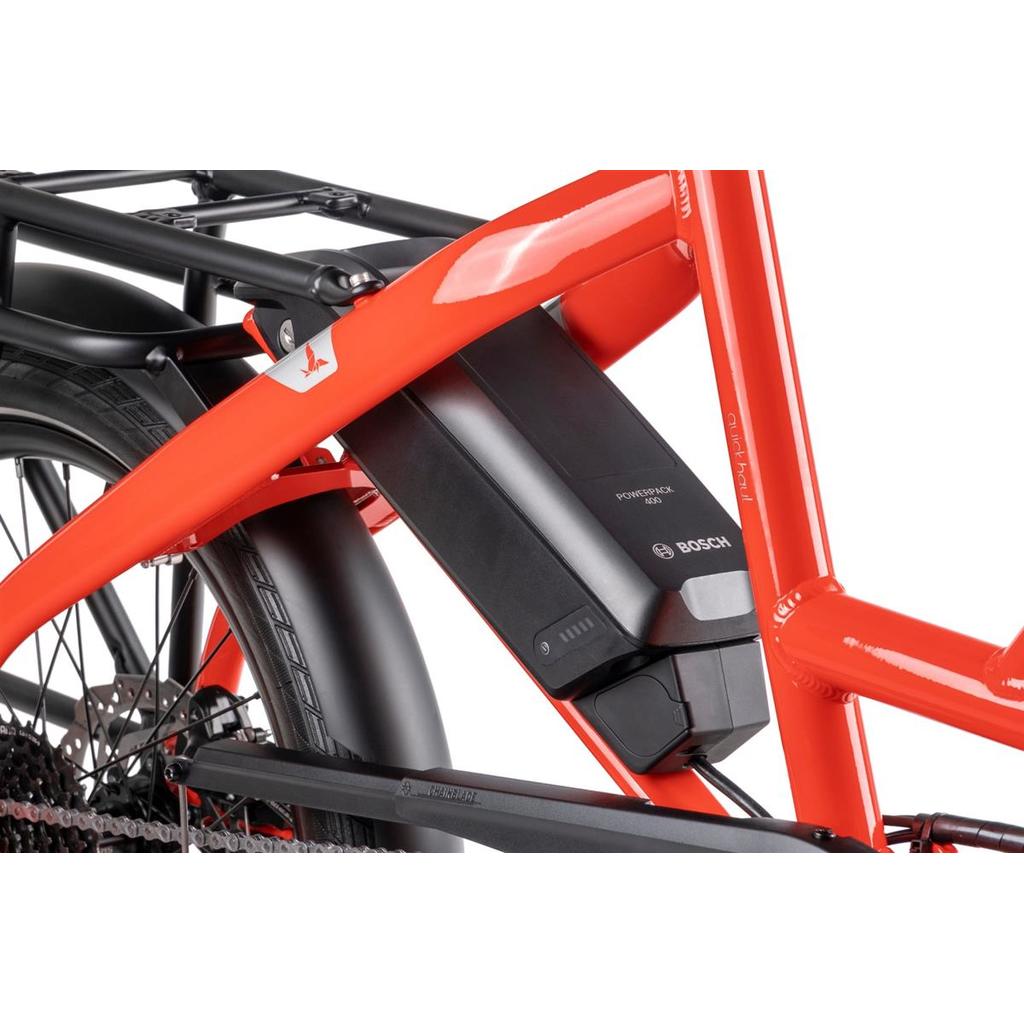

Battery
Bosch 500 Wh -

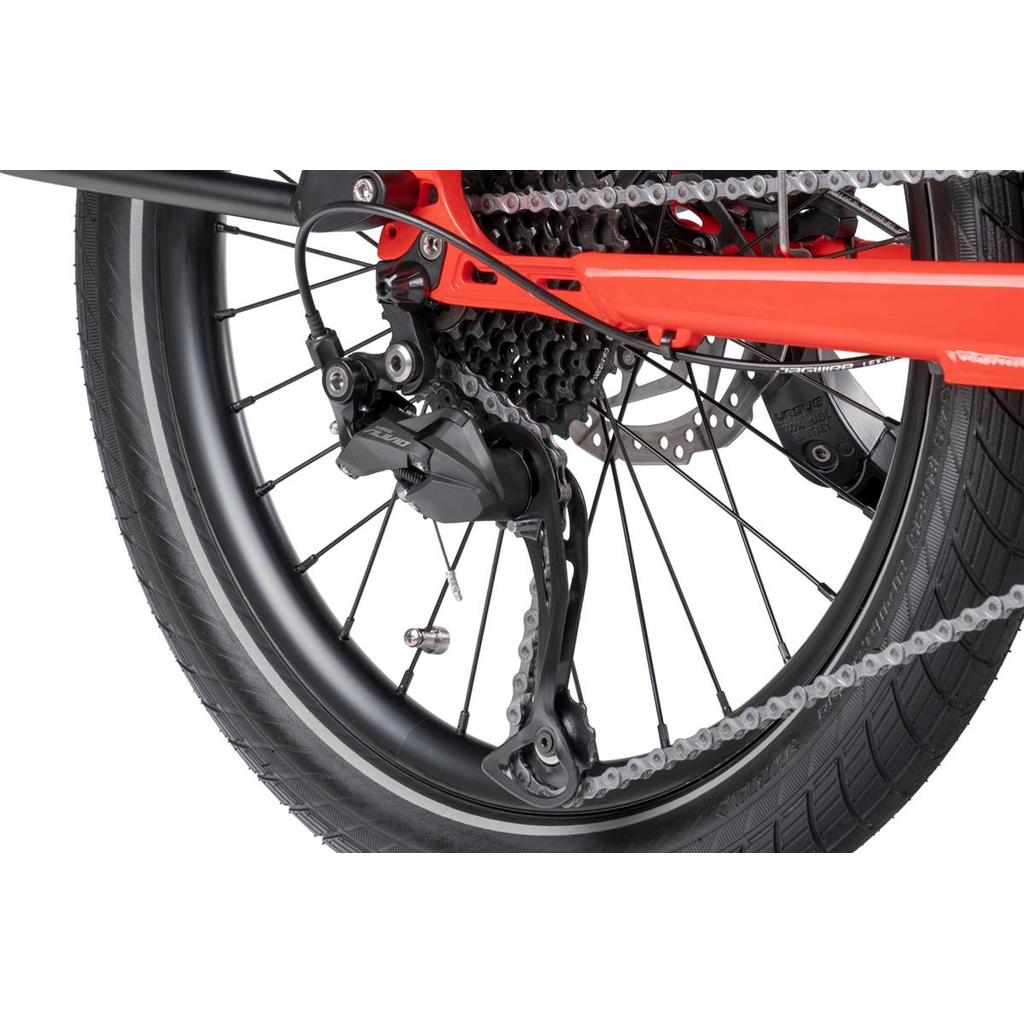

Rear derailleur (rear shifter)
Shimano Alivio Shadow -
Gear change
Shimano Alivio, 1 x 9 spd, trigger -
front brake
Shimano, hydraulic disc -
Rear brake
Shimano, hydraulic disc -
Brake levers
Shimano, hydraulic disc -
Crank
Tern custom, forged 6061-AL crankarm -
Bottom bracket
Motor integrated -
Headset
TH, cartridge bearings -
Pedals
Urban with non-slip surface -
Cartridge
Shimano 11-34T, 9 spd -
Chain
KMC for eBike, 9 spd -
Number of speeds
1x9 -

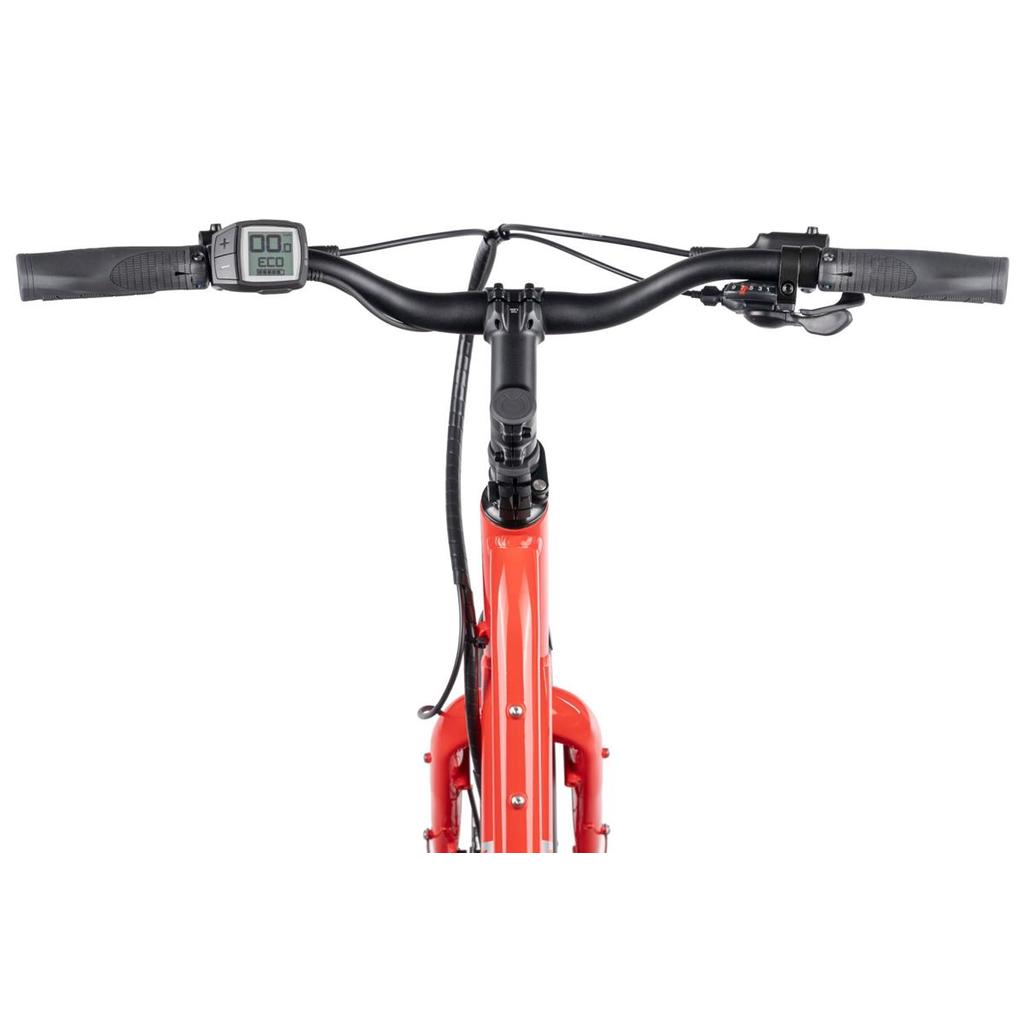

Handlebars
Low riser, 31.8, 6061-AL -

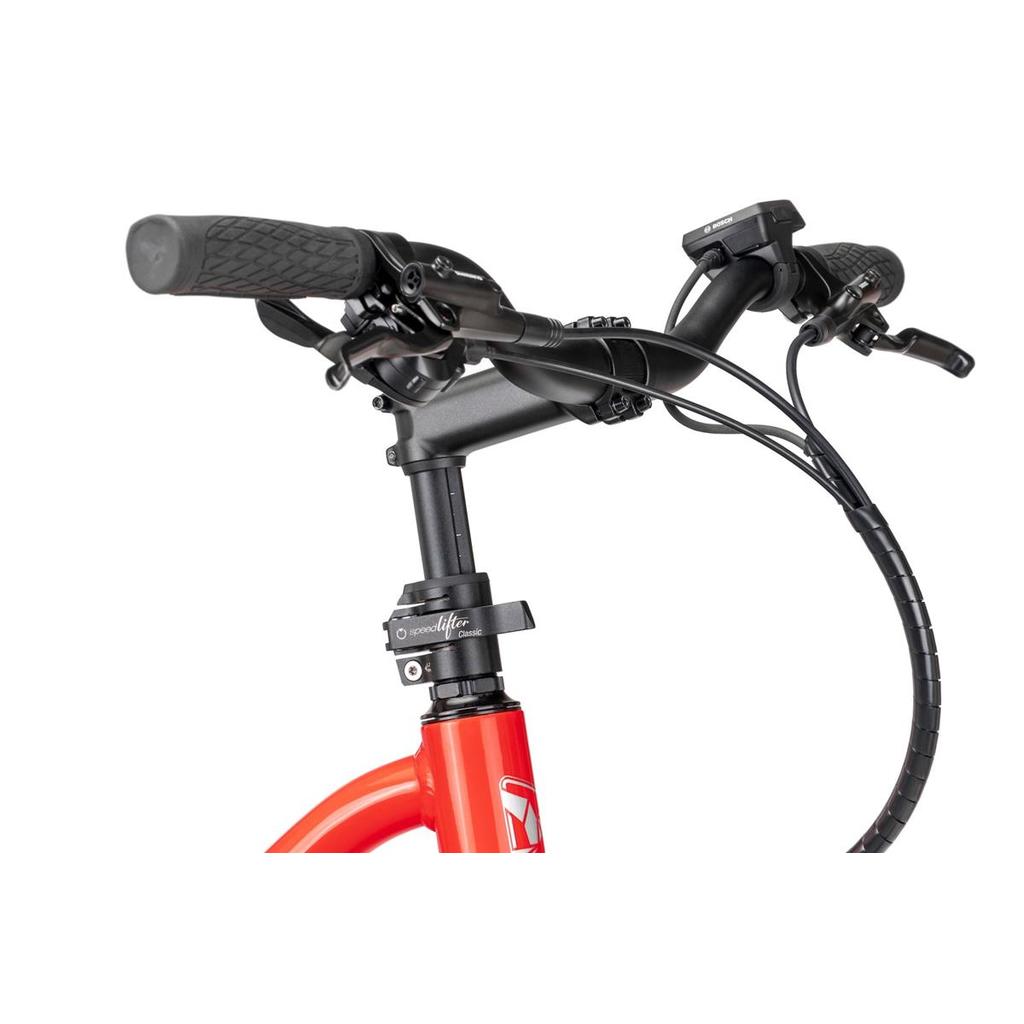

Stem
Speedlifter, 150 mm extension, 3D Forged stem, 31.8 -
Seatpost
31.6 mm, 6061-AL, micro-adjust clamp -
Saddle
Velo Comfort -
Grips
Velo ergonomic, lock-on -
Front hub
Shimano disc -
Rear hub
Shimano disc -
Rims
Kinetix Comp, for disc -
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex -
Front light
Herrmans, 120 lumens -
Tail light
Herrmans -
WEIGHT
22.9 kg -
120 kg (150 kg s nákladem) -
Recommended height of rider
160 - 195 cm -
Charger
Compact Charger, 100-240V, 2A -
Mudguards
Chromeplastic, stainless hardware -

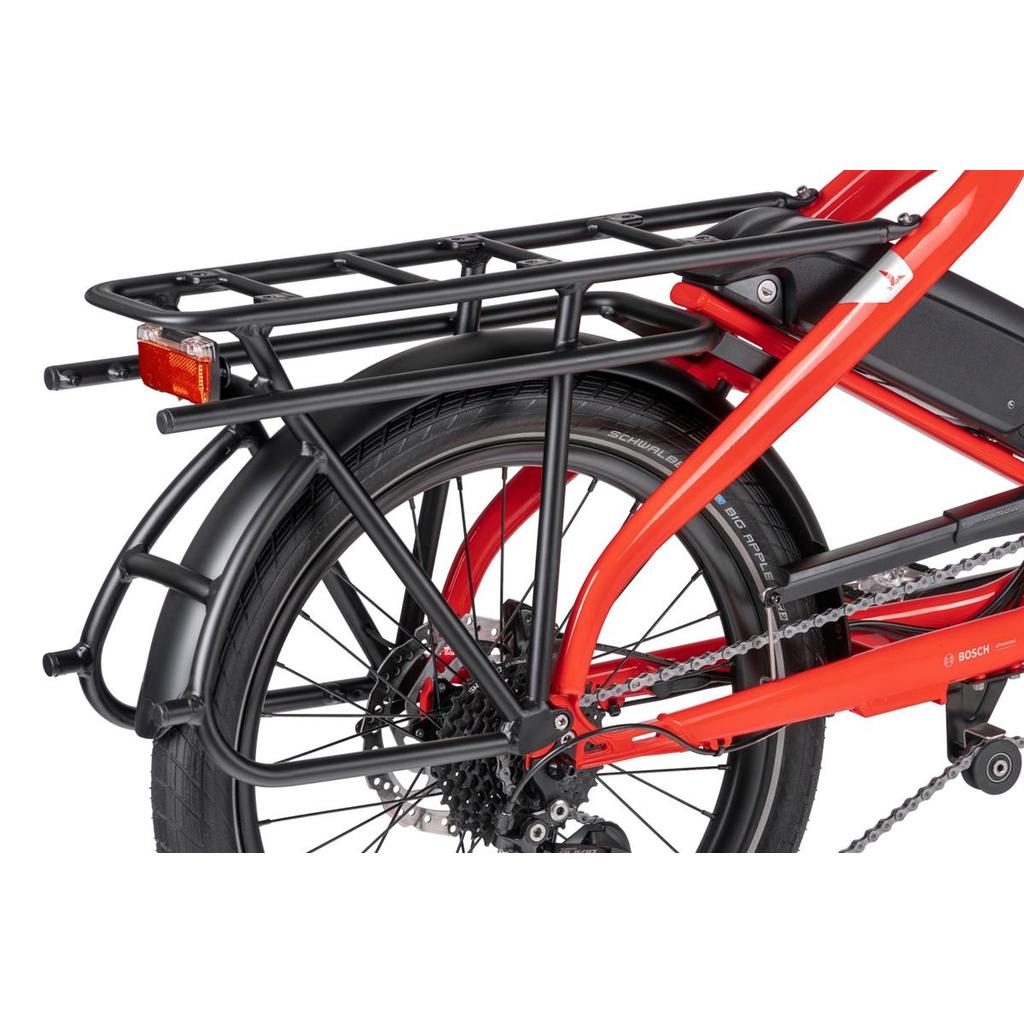

carrier
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Other
-
Product code
N23000010
