Tern Quick Haul D8 Active Plus
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.
The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.
The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.
If you were buying a car, you’d assume your spouse, partner, teenager, and best friend could use it, too. The same should go for your e-bike, which is why we outfitted the Quick Haul with an adjustable stem and seatpost to fit riders 160 - 195 cm (5’3” - 6’5”).
Shorter rider? No problem. The Quick Haul also fits riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter seatpost (350 mm).
What Makes it a D8?
- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
- 1x8-speed Shimano Altus groupset with trigger shifter
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
Procut classification
| For whom: | Men's / Unisex |
| Type: | Foldable |
Technologies
-

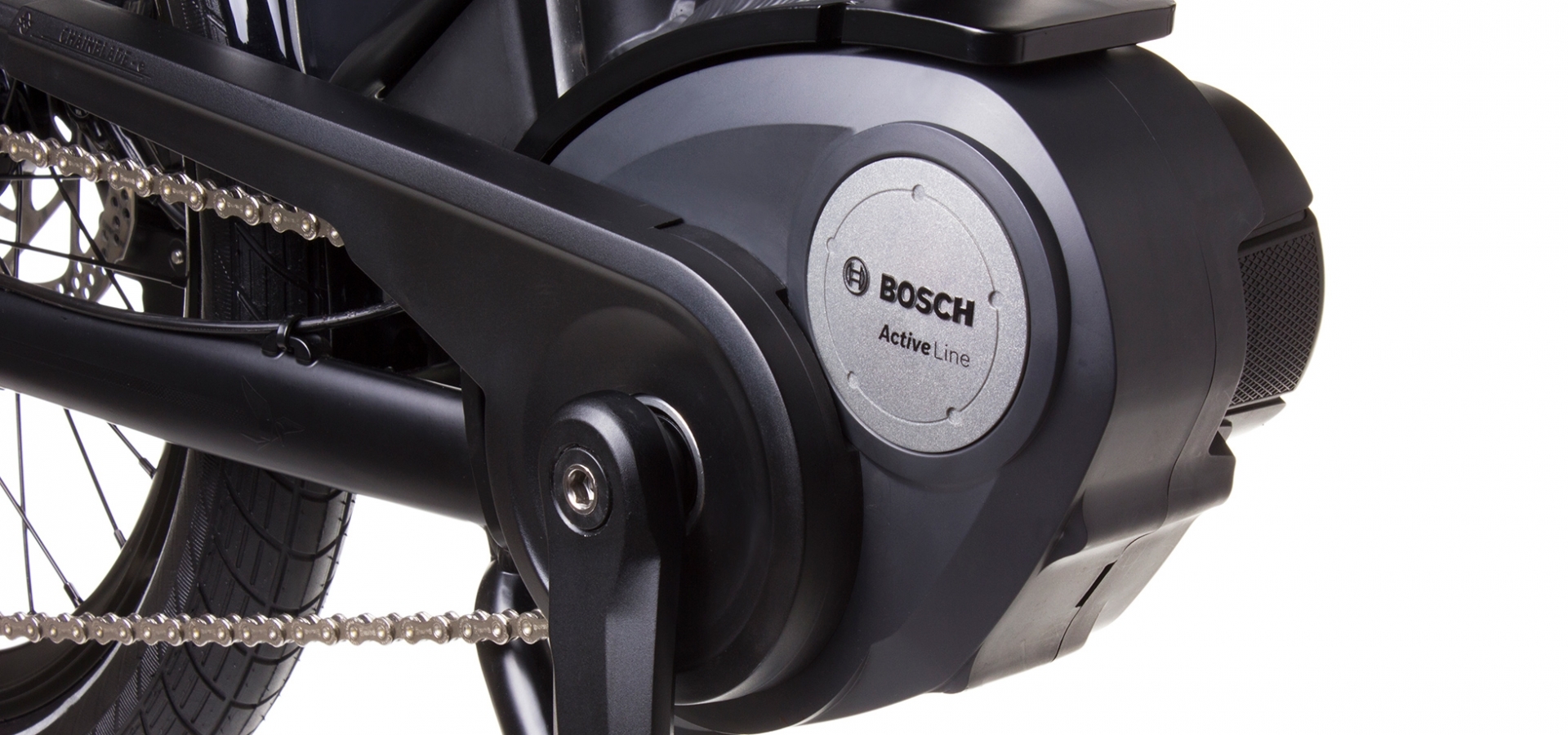

Bosch Active Drive Unit
Universal performance
Adapted from Bosch’s German-engineered automotive applications, the Active Drive Unit can take you up to 25 km per hour (20 mph in the U.S.) and operates dependably—day in and day out. Its high-performance electronics, whisper-quiet operation, and low-levels of vibration are remarkable—especially given the lightweight, ergonomic design.
Technical description
-
Frame
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg -
Fork
Cargo, steel, EFBE approved: 150 kg -
Displey
Bosch Purion -
Engine
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU) -
Battery
Bosch 500 Wh -
Range
63-125 km -
Rear derailleur (rear shifter)
Shimano Altus Shadow -
Gear change
Shimano Altus, 1 x 8 spd, trigger -
front brake
Shimano, hydraulic disc -
Rear brake
Shimano, hydraulic disc -
Brake levers
Shimano, hydraulic disc -
Crank
Tern custom, forged 6061-AL crankarm -
Bottom bracket
Motor integrated -
Headset
TH, cartridge bearings -
Pedals
Urban with non-slip surface -
Cartridge
Shimano 11-34T, 8 spd -
Chain
KMC for eBike, 8 spd -
Number of speeds
1x8 -
Handlebars
Low riser, 31.8, 6061-AL -
Stem
Speedlifter, 150 mm extension, 3D Forged stem, 31.8 -
Seatpost
31.6 mm, 6061-AL, micro-adjust Tern Collar -
Saddle
Velo Comfort -
Grips
Velo ergonomic, lock-on -
Front hub
Shimano disc -
Rear hub
Shimano disc -
Rims
Kinetix Comp, for disc -
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex -
Front light
Herrmans, 120 lumens -
Weight
22.8 kg -
Charger
Compact Charger, 100-240V, 2A -
Mudguards
Chromeplastic, stainless hardware -
carrier
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Other
-
Product code
N22002438
