Technologies

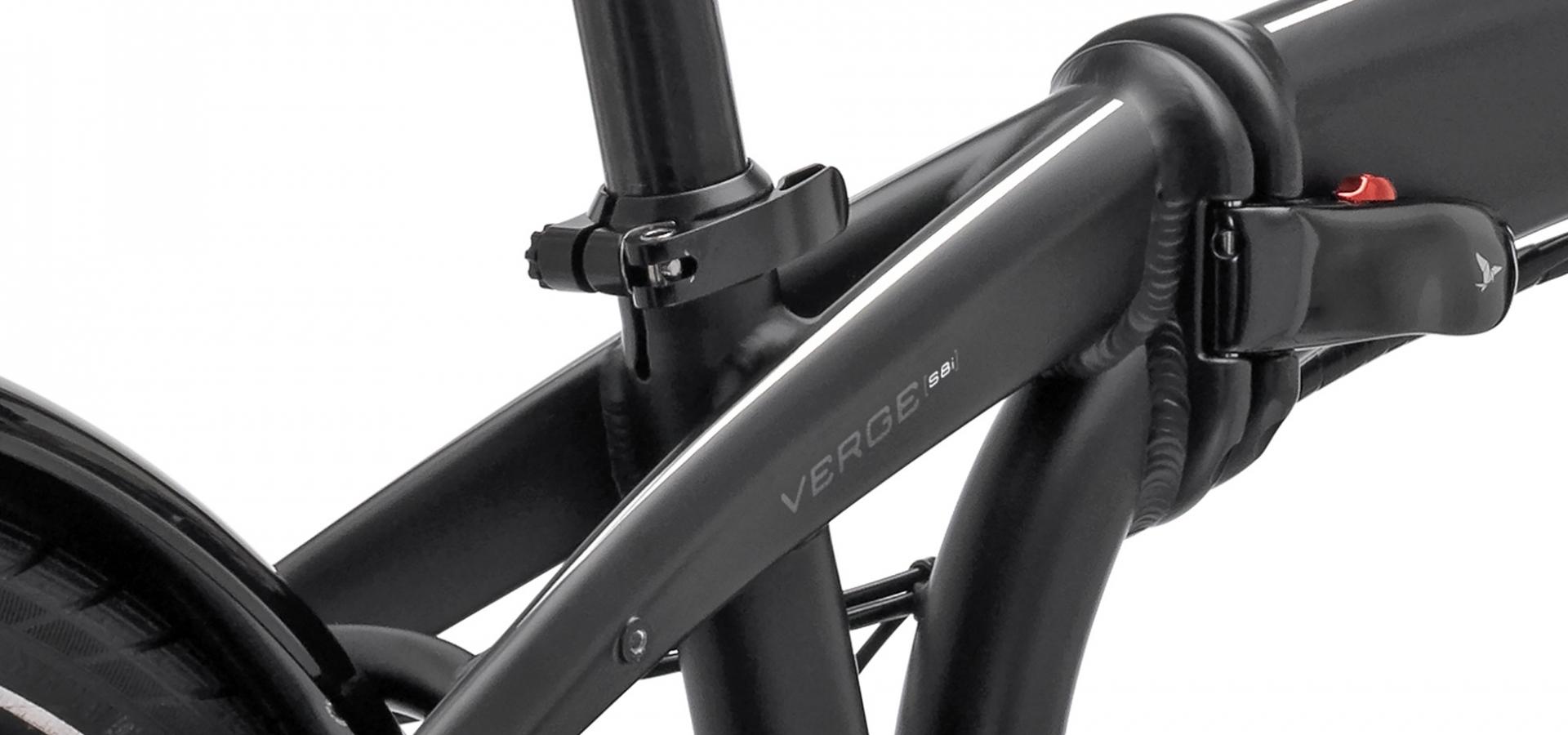

• DoubleTruss™ Technology

  Stiffer by design

  The rear half of Tern frames use a patented 3D structure we call DoubleTruss to build in extra stiffness. It helps resist torsional forces so our bikes flex less. That means increased stiffness and much better power transfer from the pedals to the rear wheel. The proof’s in the ride.



  Close
• Luggage Socket™

  Carry more stuff

  Fix the Tern Luggage Truss to the Luggage Socket and you can plug in your choice of front luggage: rack, basket, or bag. If it’s KlickFix compatible, it’ll work.



  Close
• Magnetix™ 2.0

  Keep it together

  The Magnetix 2.0 uses powerful magnets to keep your bike folded for situations like carrying your bike up and down stairs. With a pull force 10-15 Kgf, the Magnetix 2.0 will keep your bike folded even when being jostled and moved about.



  Close
• N-Fold™ Technology

  The faster fold

  With N-Fold Technology, Tern bikes fold small and fast—in three easy steps. It’s simple enough for anybody to master. And with the handlepost folded to the outside of the package, Tern bikes can also roll when folded for easy transport.



  Close
• OCL™ Frame Joint

  Advanced folding technology

  The key to any folding bicycle is the main folding joint. Done well, it locks the two halves of the frame together without any hint of movement or sound. It should be easy to operate and work flawlessly year after year. The OCL Joint does all of these things and is a new reference in folding frame technology.



  Close
• Physis™ 3D Handlepost

  The new benchmark

  Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.



  Close
• Andros™ Stem

  Adjust to fit

  The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.



  Close
• Schwalbe Big Apple Tires

  Cush for your tush

  Big Apples are special because they’re fast rolling AND super comfy. Sounds hard to believe but you’ll just have to take them for a ride to become a believer.



  Close
• Velo® Ergonomic LockOn Grips

  ErgoLock grips are nice and wide for excellent palm support so your hands can relax during the ride. They also lock in place on the handlebars so they’re always in the correct position, unlike non-locking grips which tend to rotate out of position.

  Close

Technical description

• FRAME

  Node, aluminum, patented OCL Joint and DoubleTruss technology, Igus bearings
• Fork

  Integrated, hi-tensile steel
• Rear derailleur (rear shifter)

  Neos 1.0, low-profile design, RapidRise
• Gear change

  SRAM MRX Comp, 8 spd
• front brake

  V, aluminum, linear spring
• Rear brake

  V, aluminum, linear spring
• Brake levers

  V, aluminum bracket/lever
• Crank

  Cold-forged 6061 aluminum crank arms, hand-polished
• Bottom bracket

  Cartridge, sealed bearings
• Headset

  Flux, cartridge bearings, dual-seal technology
• Pedals

  Folding, alloy body
• Cartridge

  8 spd, 12-32T
• Chain

  8 spd
• Number of speeds

  8
• Handlebars

  Flat bar, 6061-Al
• Stem

  Tern Andros, adjustable, forged construction, patented technology
• Seatpost

  SuperOversize, 6061-Al, micro-adjust clamp
• Saddle

  Velo Sport
• Grips

  BioLogic Ergo, dual-density Kraton
• Front hub

  Mini, aluminum, QR
• Rear hub

  Formula, 8 spd cassette, QR
• Rims

  High profile, doublewall
• Tires

  Schwalbe Road Cruiser, 47-507, KevlarGuard puncture protection, Reflex
• Wheel size

  24"
• Dimensions folded

  39 x 86 x 84 cm
• BELL

  Aluminum
• Stand

  Aluminum, Dacromet bolt

Other

• Product code

  N20004233
