Tern GSD R14 EU CargoLine

Trend+Skipass

The frame size folding bicycles tend to be uniform (Uni) for the models. Bicycles have an adjustable seatpost and the tube of the handlebar on a large scale.

Recommendation the height of the slider according to the model range:

Model

The recommended height of the rider

The size of the rims

Link142 - 190 cm (4'8" - 6'3")20"
GSD150 - 195 cm (4'11" - 6'5")20"
HSD150 - 195 cm (4'11" - 6'5")20"
NBD147 - 190 cm (4’10” – 6’3”)20"
BYB147 - 195 cm (4’10” – 6’5”)20"
Vektron145 - 195 cm (4’10” – 6’5”)20"
Verge142 - 190 cm (4'8" - 6'3")20" (451)
Eclipse148 - 195 cm (4'10" - 6'5")26"
Node148 - 195 cm (4'10" - 6'5")24"
Joe142 - 190 cm (4'8" - 6'3")26 / 27,5"
Short Haul

147 - 190 cm (4'10" - 6’3")

20"
Quick Haul

160 - 195 cm (5’3” - 6’5”)

with a shorter seatpost (350 mm)

145 - 180 cm (4’9” - 5'11")

20"

JOE C21 and the JOE TOUR:

S: 157 - 167 cm (5'2" - 5'6"); M: 167 - 183 cm (5'6" - 6'); L: 183 - 190 cm (6' - 6'3")

DO NOT MISS - IMPORTANT INFORMATION FOR BIKES PURCHASING AND MAINTENANCE
The maximum speed of the e-bike with engine assistence is a maximum of 25 km/h
Color  Delivery time
Size

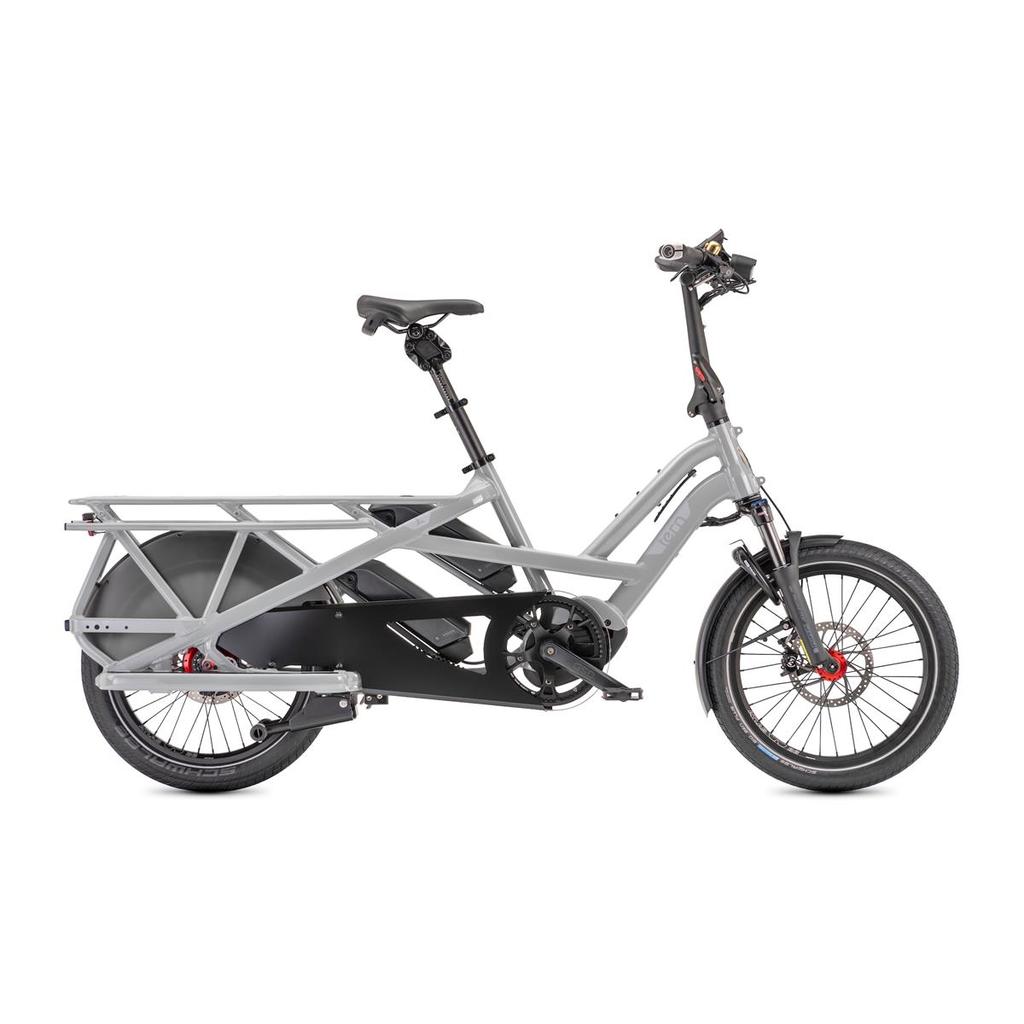

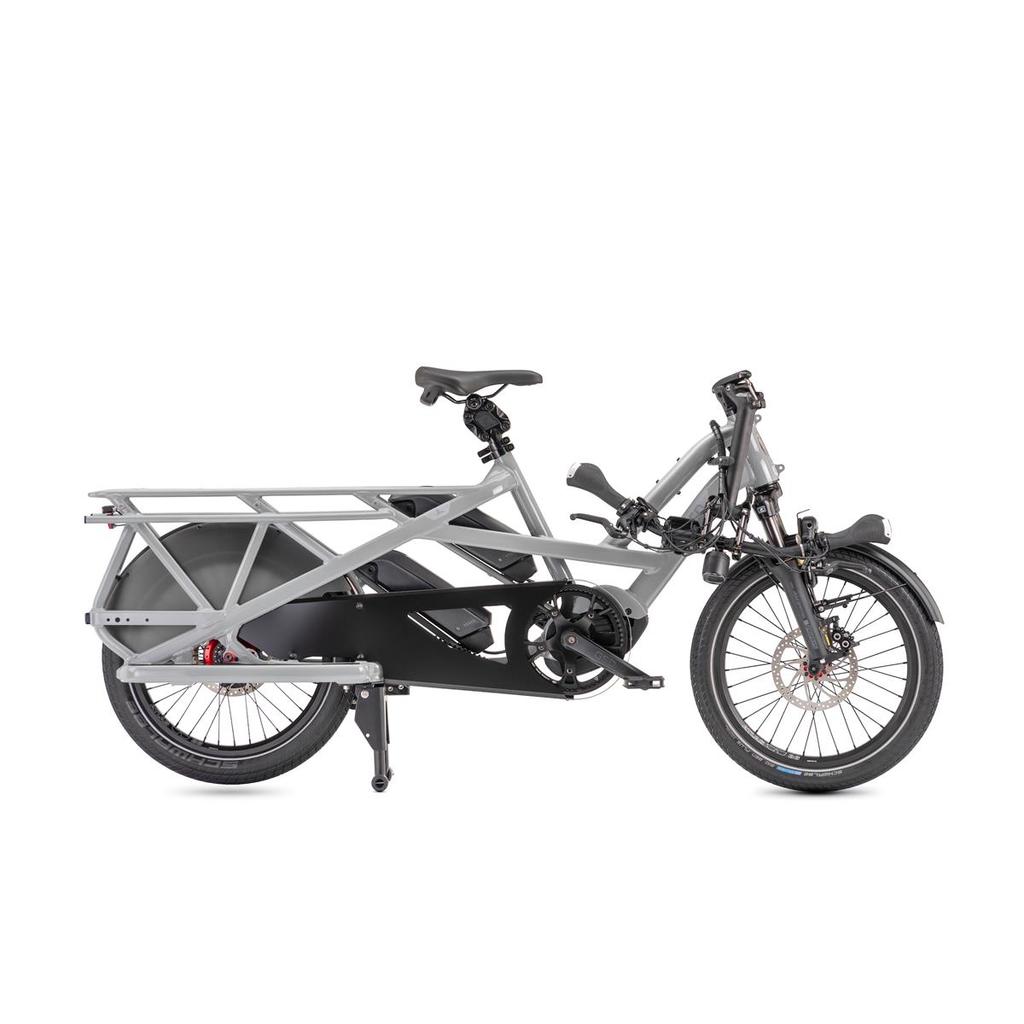

 Tern GSD R14 EU CargoLine

  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
  • Bosch dual-battery system (1000 Wh) for a range of up to 206 km (128 mi)
  • Rohloff® Speedhub features a 526% gear range, electronic shifting, and automatic downshifting
  • Gates® CDX Belt Drive is silent, smooth, and virtually maintenance-free
  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock

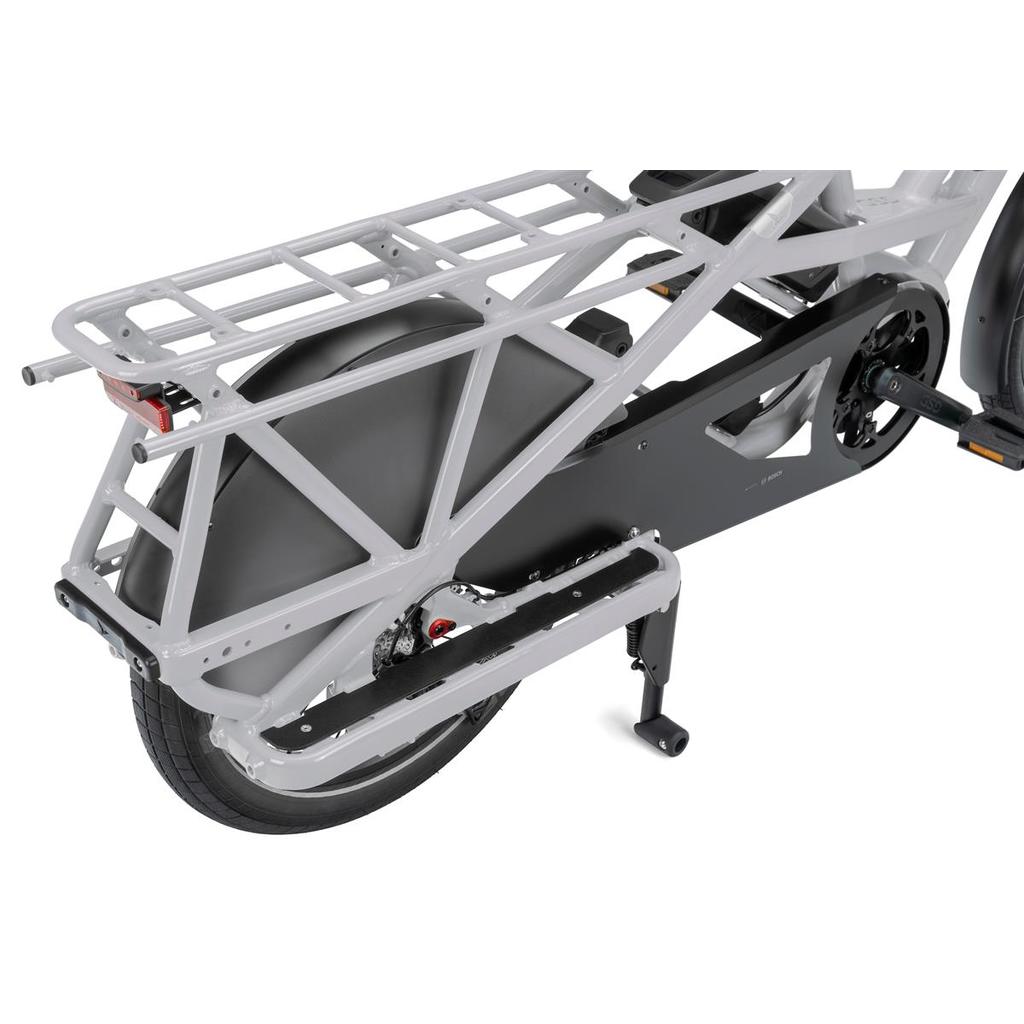

  • Heavy-duty frame-integrated rear rack and integrated lower decks
  • Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
  • Always-on RearStop™ Brake Light helps you safely signal stops
  • Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
  • Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
.

Procut classification

For whom: Men's / Unisex
Type: Foldable

Technical description

  • Frame

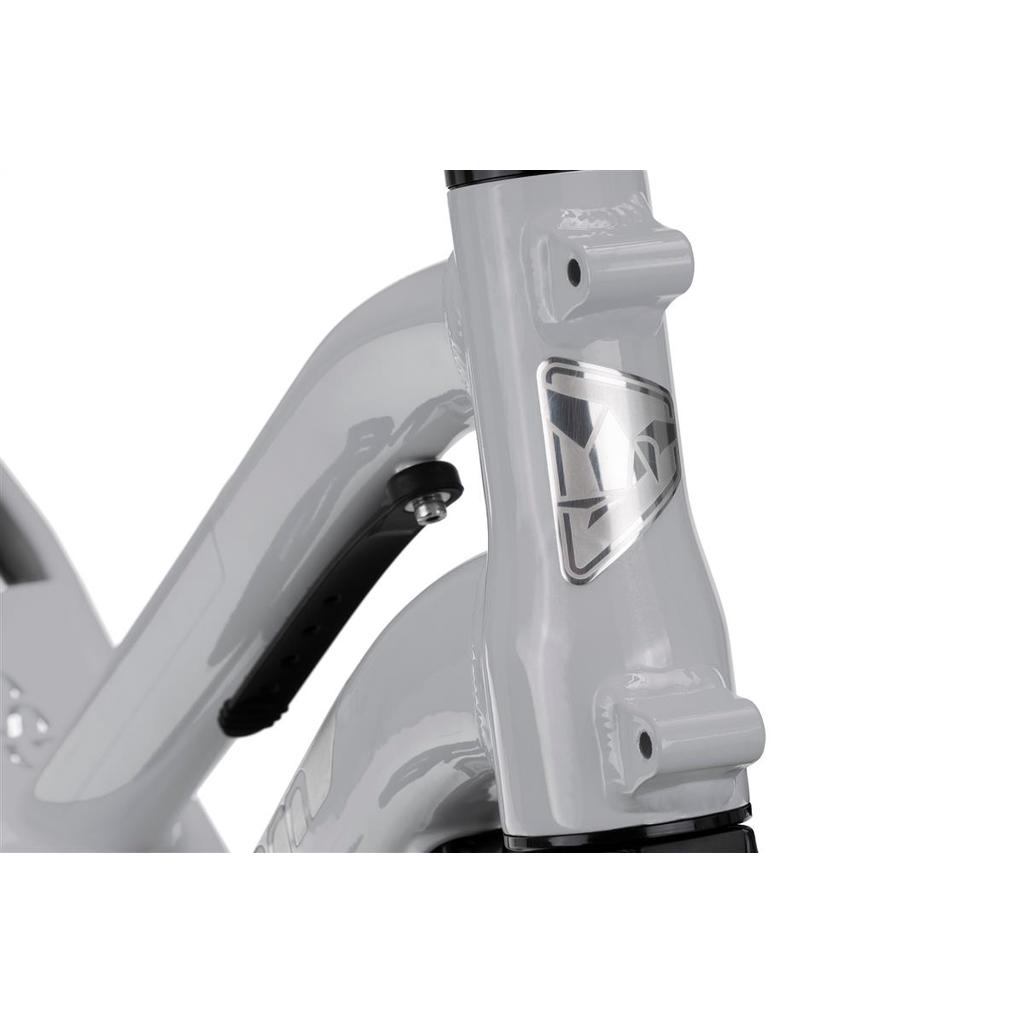

    Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
  • Fork

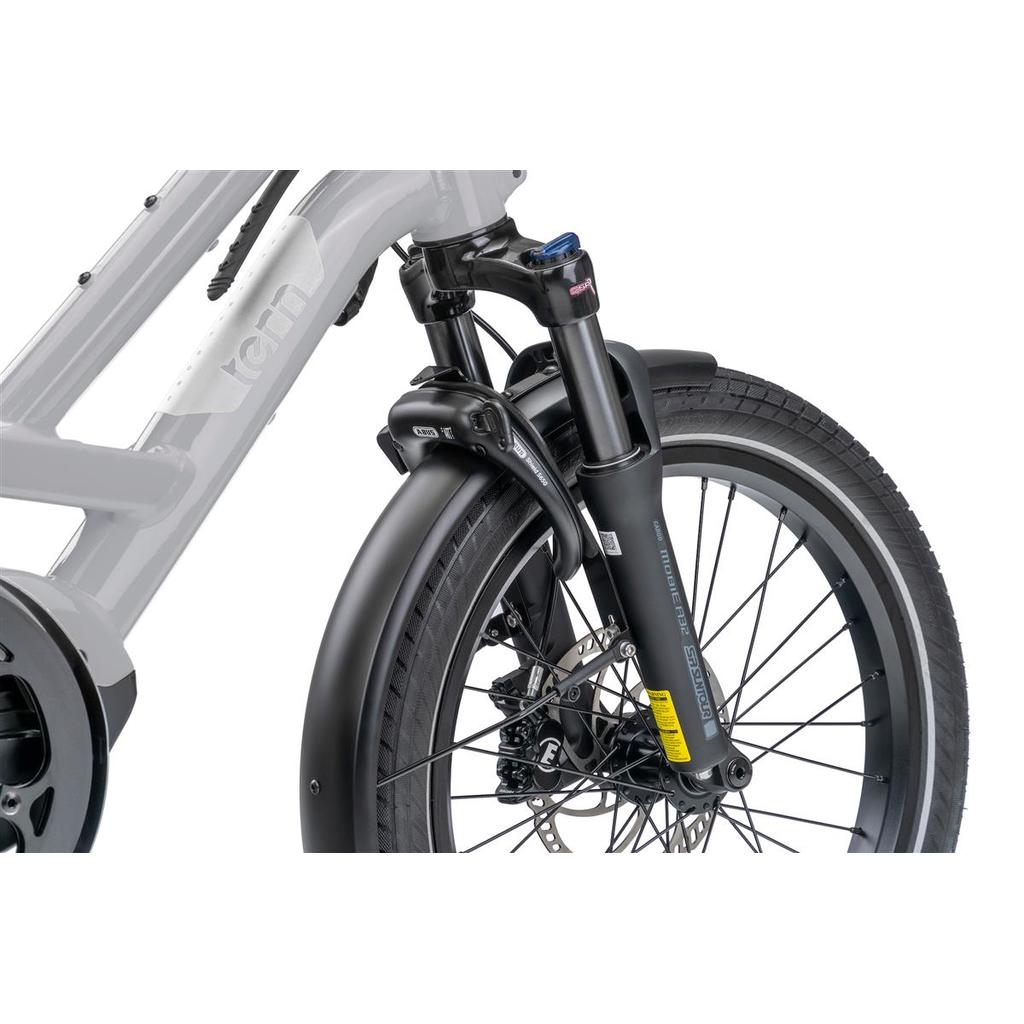

    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
  • Engine

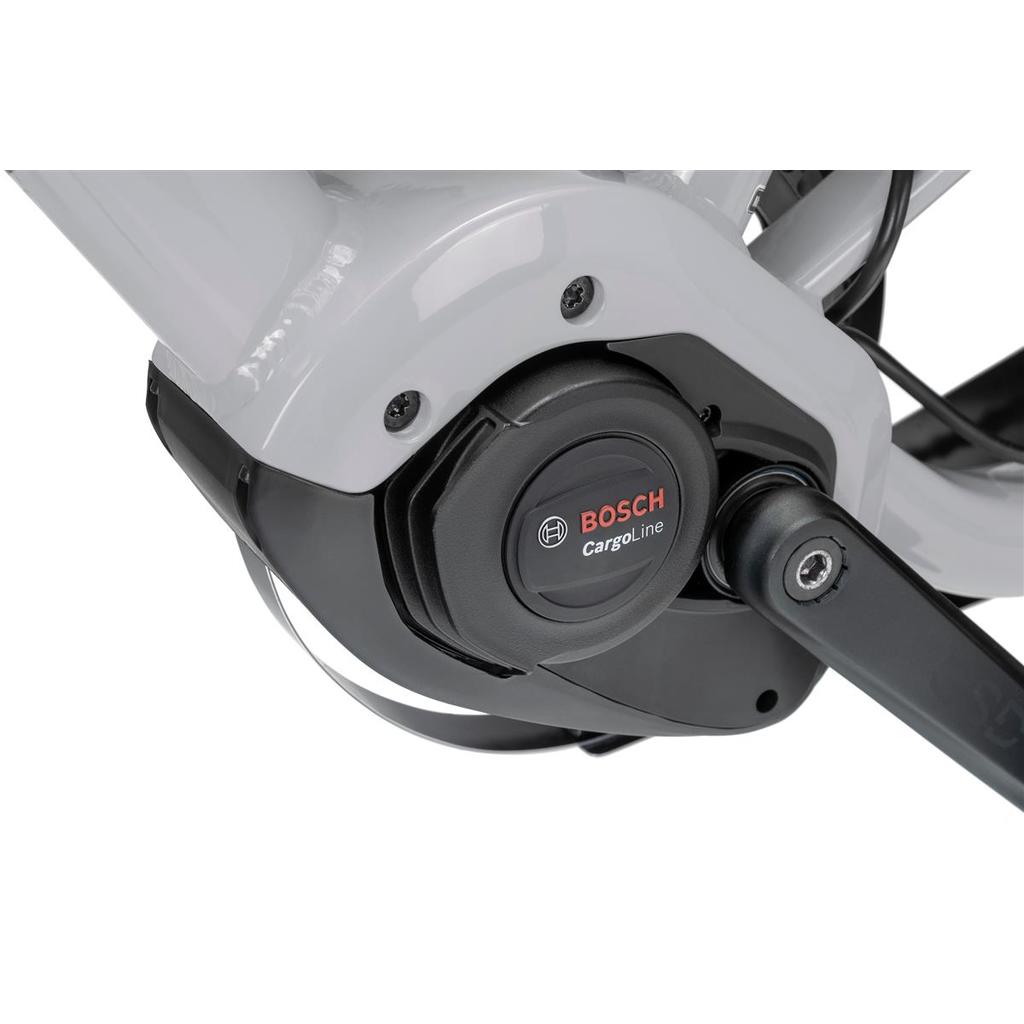

    Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
  • Battery
    Bosch Dual Battery system, 2x500 Wh
  • Gear change
    Rohloff E14, e-shift 14 spd
  • front brake
    Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
  • Rear brake
    Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
  • Brake levers
    Magura MT5 e-stop, hydraulic, with brake sensor
  • Crank
    Tern GSD custom, Gates CDX CNC machined beltring
  • Bottom bracket
    Motor integrated
  • Headset
    Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  • Pedals
    Urban with non-slip surface, sealed bearings
  • Cartridge
    Gates CDX, precision CNC machined cog
  • Chain
    Gates Carbon Drive CDX belt
  • Handlebars
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Seatpost

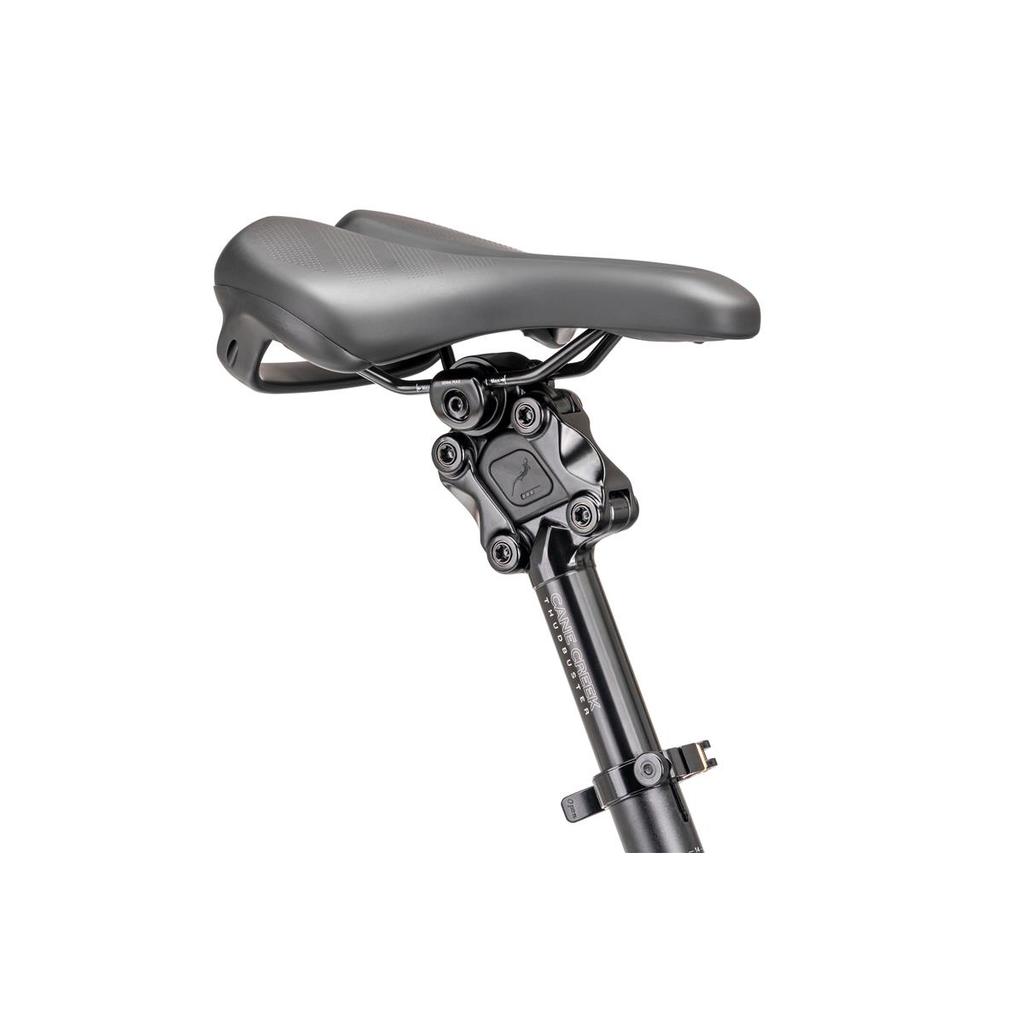

    Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
  • Saddle
    Tern GSD by Velo, with rear handle
  • Grips
    Ergon
  • Front hub

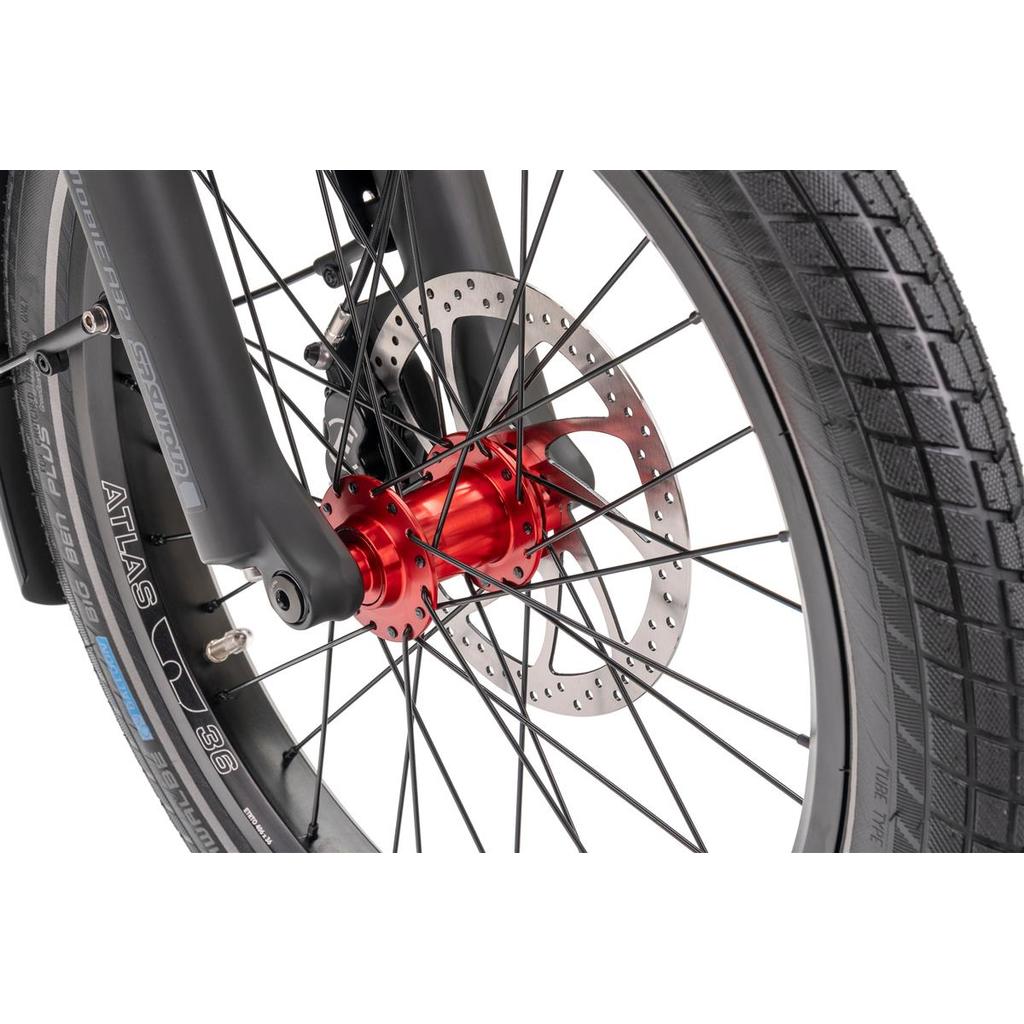

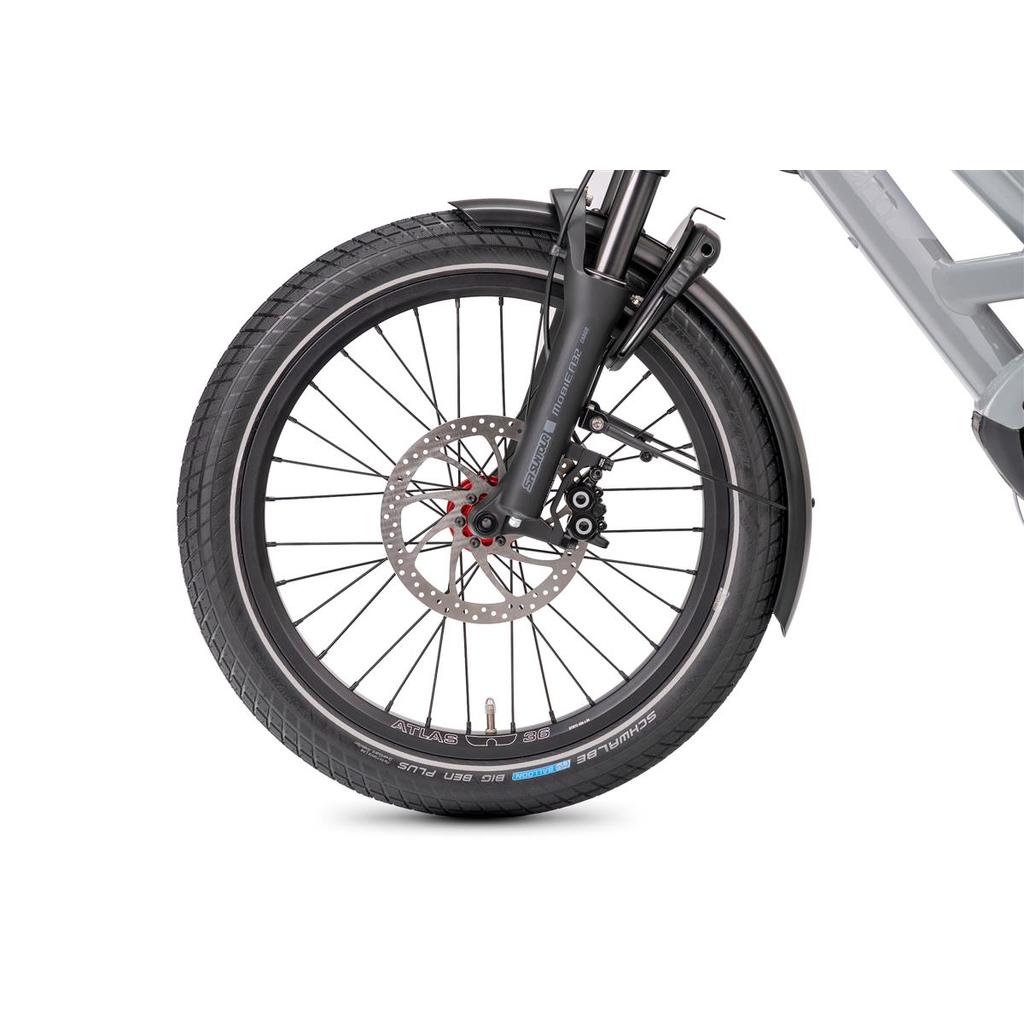

    Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • Rear hub

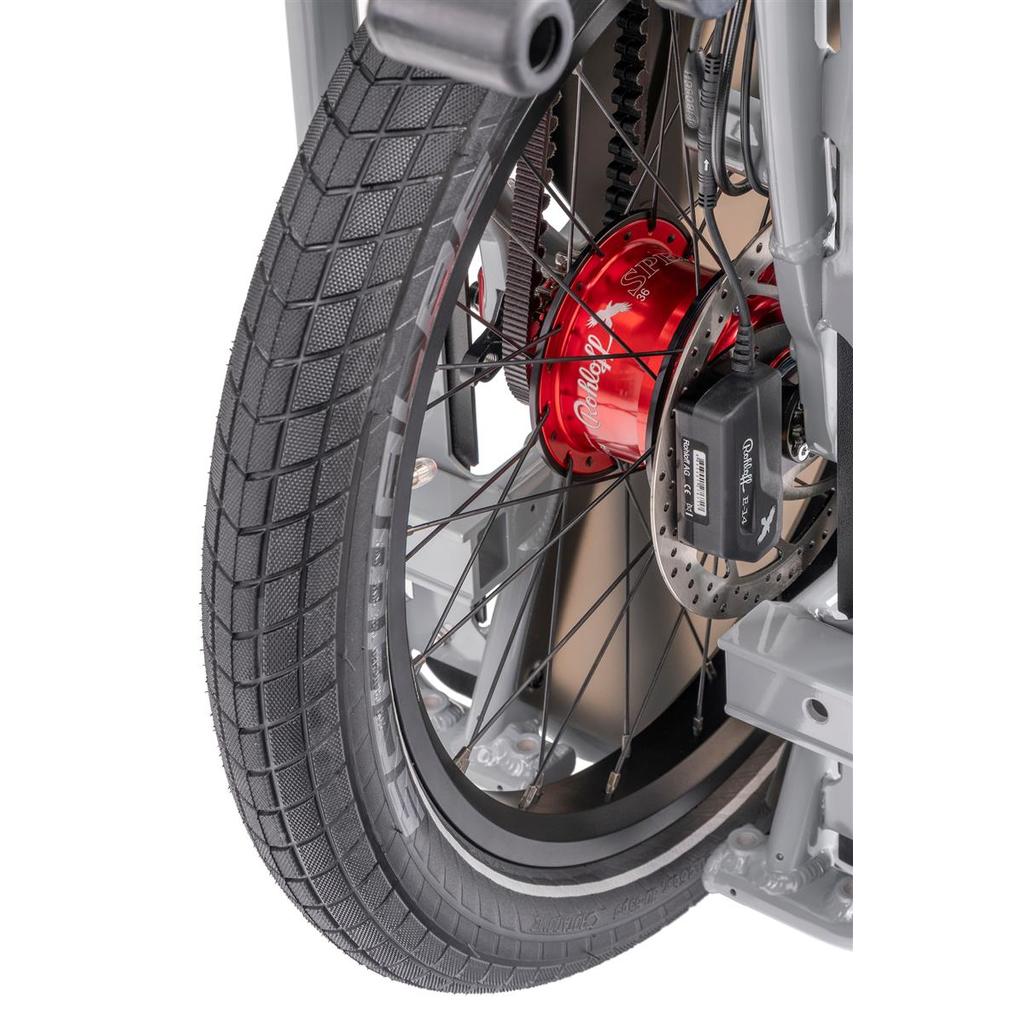

    Rohloff E14, 526% range, Boost
  • Rims
    Tern Atlas, ultra wide 36 mm, dual reinforced joint
  • Tires
    F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  • Tube control
    Tern Physis 3D, 3D forged, 5 patented technologies, 12 °, 290 mm
  • Display
    Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
  • Charger
    220V, 4A (EU)
  • BELL
    Pitch Plus, brass
  • Chain cover
    Tern Custom, full chain cover
  • Stand

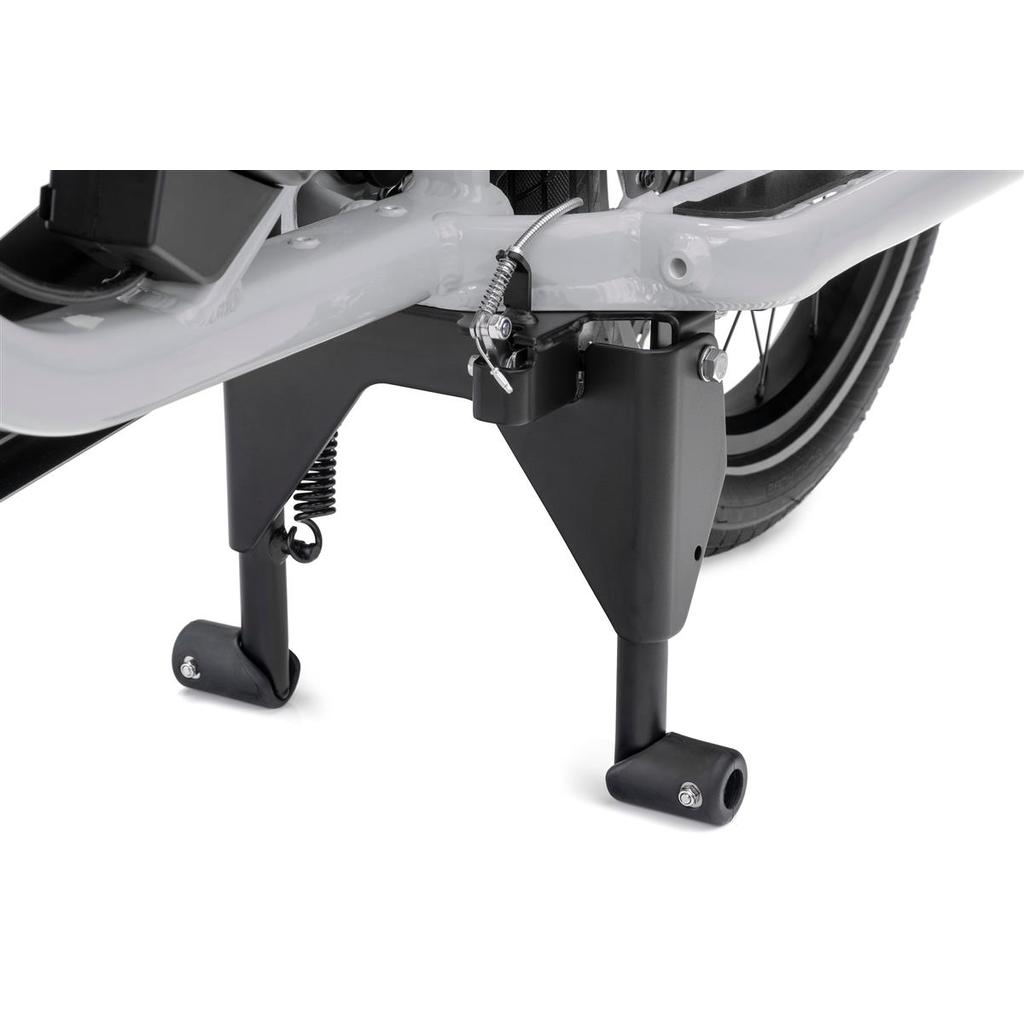

    Atlas Lockstand, w/ remote unlock, patented technology
  • Front light
    Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
  • Tail light
    RearStop Brake Light, Always on brake light
  • Mudguards
    Integrated Wheel Guard, AL6061, w/ Side Skirt
  • carrier
    Frame integrated, heavy duty design

Other

  • Product code
    N21000304
