Folding bike TERN Eclipse D16
The Eclipse D16 delivers the best price-to-performance ratio of any bike in our lineup. Designed with full-sized 26” wheels, hydraulic disc brakes, and a massively stiff hydroformed Eclipse frame, it ticks all the boxes. Somehow, we managed to get it all in there at an amazing price.
- The bike includes fenders, but without a carrier
- Best-riding introductory bike in our lineup, thanks to large 26” wheels and our unique folding technology
- Folds in 10 seconds or less—store it indoors or transport it in your car
- Resizes in seconds to fit a wide range of riders
- Tool-free adjustable handlebar stem lets you change riding positions on the fly
Living in the city can make it hard to enjoy your bike. From sorting out storage to worrying about theft to wrestling with public transportation—the hurdles are many. The Eclipse provides an elegant solution: a full-size bike that folds surprisingly small, in a matter of seconds and without tools or disassembly.
- Elegantly Portable and Compact
Procut classification
| Wheel size: | 26" |
Technologies
-
Andros™ Stem
Adjust to fit
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
-
Luggage Socket™
Carry more stuff
Fix the Tern Luggage Truss to the Luggage Socket and you can plug in your choice of front luggage: rack, basket, or bag. If it’s KlickFix compatible, it’ll work.
-
Magnetix™ 2.0
Keep it together
The Magnetix 2.0 uses powerful magnets to keep your bike folded for situations like carrying your bike up and down stairs. With a pull force 10-15 Kgf, the Magnetix 2.0 will keep your bike folded even when being jostled and moved about.
-
OCL™ Frame Joint
Advanced folding technology
The key to any folding bicycle is the main folding joint. Done well, it locks the two halves of the frame together without any hint of movement or sound. It should be easy to operate and work flawlessly year after year. The OCL Joint does all of these things and is a new reference in folding frame technology.
-
Physis™ 3D Handlepost
The new benchmark
Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.
-

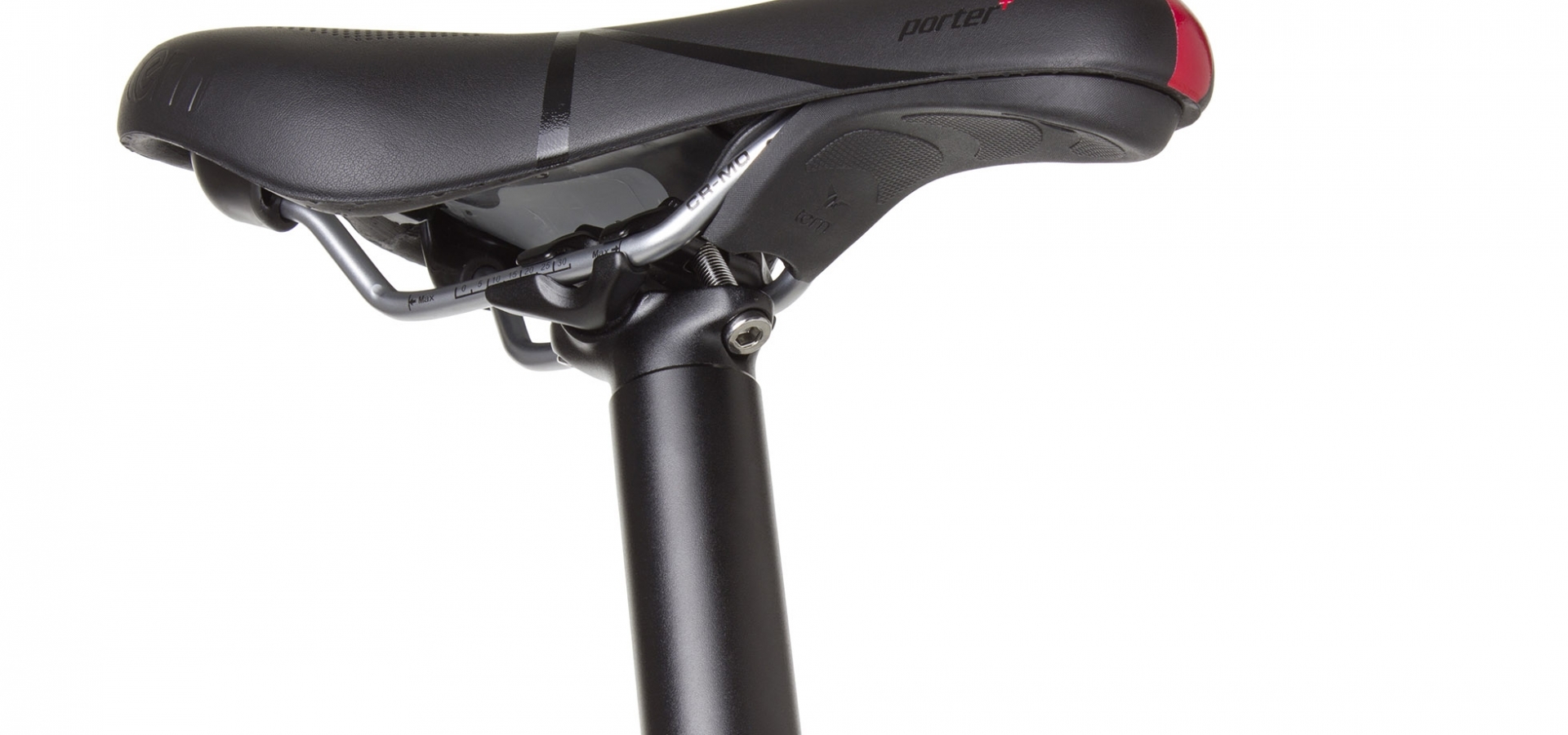

Porter+™ Saddle
Roll with control
We reengineered the underside of the age-old bike saddle into a comfortable grip for transporting your folded bike. Up top, the dual-density construction and gel cushioning will keep you comfortable on the road, and the impeccably finished vacuum construction makes the saddle waterproof and easy to clean. Down below, the GripPad™ lets you roll your folded bike with comfortable confidence.
-
Shimano Hydraulic Disc Brakes
Stop on demand
Leveraging technology that’s been working successfully on motorcycles for decades, these brakes will bring you to a confident stop—even in rain, snow, or mud. All it takes is the gentle pull of just two fingers. The caliper design is both ridged and durable, and the non-corrosive mineral oil brake fluid is gentler on the environment than most hydraulic brake fluids.
-
All the Right Gear
Choose from extensive ecosystem of accessories to create solutions that work for you. From bags to baskets to briefcases for your bike, we've got what you need to make the most of the Eclipse's versatility.
-
One Size Fits Most
Adjusts to fit a wide range of rider heights with a spacious cockpit and an adjustable seatpost and stem.
-
Tern Folding Technology
Designing a folding bike that performs like a road bike requires us to have some tricks up our sleeve. Innovations like our patented Andros Stem, Physis 3D Handlepost, and OCL+ Frame Joint make it possible.
Technical description
-
FRAME
Tern Eclipse, hydroformed aluminum, OCL+ joint, 3 patented technologies -
Fork
Integrated, hi-tensile steel -
Front derailleur (front Shifter)
Shimano Altus -
Rear derailleur (rear shifter)
Shimano Claris -
Gear change
Shimano, 2 x 8 spd, trigger -
front brake
Shimano, hydraulic disc -
Rear brake
Shimano, hydraulic disc -
Brake levers
Shimano, hydraulic disc -
Crank
Forged 6061-AL crank, 50/34T -
Bottom bracket
Cartridge, sealed bearings -
Headset
Flux, cartridge bearings, Physis integrated -
Pedals
Folding, alloy body -
Cartridge
Shimano, 11-32T, 8 spd -
Chain
KMC 8 spd -
Number of speeds
2 x 8 -
Handlebars
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm, Flat bar, 6061-AL, Tern Andros adapted -
Stem
Tern Andros (G2), adjustable, forged construction, patented technology -
Seatpost
SuperOversize, 6061-Al, micro-adjust clamp SuperOversize, 6061-Al -
Saddle
Tern Porter, patented GripPad design -
Grips
Velo ergonomic, lock-on -
Front hub
Shimano TX disc -
Rear hub
Shimano TX disc -
Rims
Doublewall aluminum, disc only -
Tires
Schwalbe Spicer Plus, 40-559, Puncture Guard, Reflex -
Wheel size
26" -
WEIGHT
14.8 kg -
Dimensions when folded
440 × 910 × 750 cm -
Recommended height of rider
148 - 195 cm -
Load capacity
max. 105 kg -
BELL
Alu -
STAND
Deluxe center mount -
Coupling mechanism
Magnetix 2.0
Other
-
Product code
N22000004
