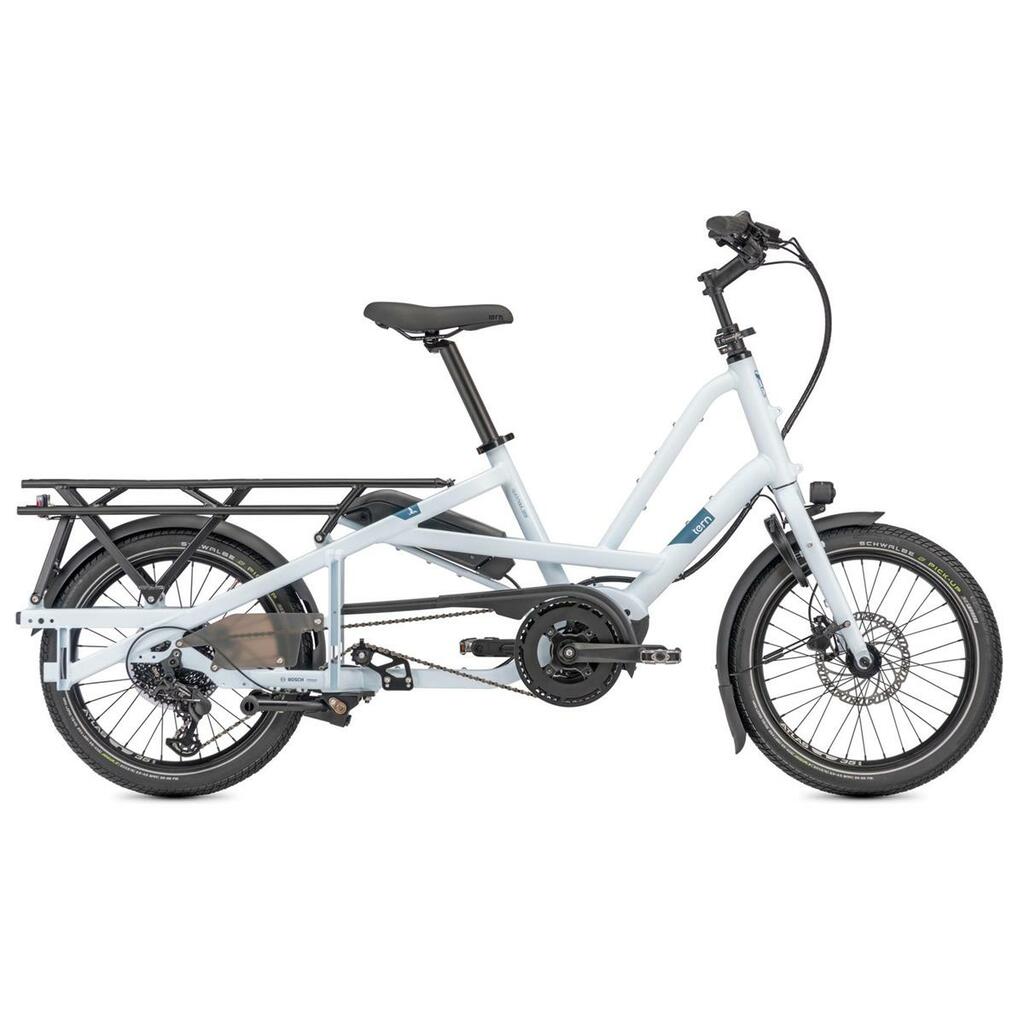

| Title | Tern Quick Haul Long P9 500 Wh |
|---|---|
| Image |  |
| Sell price | 4 099,- € |
| Brand | Tern |
| Availability | delivery in 9 days |
| Season | 2025 summer |
| Oversized product | Yes |
| Product code | 24021184 |
| EAN-Code | 0810067164689 |
| Categories | Cargo bikes, Electric bikes |
| Color | Gray, light |
| Size | Uni |
| For whom | Men's / Unisex |
| Type | Foldable |
| Frame | Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg |
| Fork | Rigid, Cargo, Aluminum alloy |
| Engine | Bosch Cargo Line, 85 Nm torque |
| Battery | BOSCH ‘Powerpack 500’, lithium-ion with BMS, 500 Wh |
| Displey | BOSCH ‘Purion’, 4 levels, push assist |
| Charger | Bosch 4 Ah |
| Rear derailleur (rear shifter) | Tektro ED9, 9-speed RD-T350-S |
| front brake | Tektro disc brake HD-T280-F |
| Rear brake | Tektro disc brake HD-T280-R |
| Brake levers | Tektro HD-T280 |
| Rotor-F | 180 mm, 6-bolt |
| Rotor-R | 180 mm, 6-bolt |
| Crank | Tern custom, forged 6061-AL |
| Bottom bracket | BOSCH |
| Headset | TH, cartridge bearings |
| Pedals | Wellgo, C169DU |
| Cartridge | Tektro, CS-M352-11-42 Z |
| Chain | KMC |
| Number of speeds | 1x9 |
| Handlebars | PROMAX, HB-3188SP, black, L680, 31.8mm, riser 50mm, P.G. 15-DEG, |
| Stem | Speedlifter, adjustable, 3D forged stem, 31.8 |
| Seatpost | 34.9 mm, 6061-AL |
| Saddle | Velo Comfort |
| Grips | VLG-1879D2, L/L, 138mm/138mm |
| Front hub | KT-K68F,14G,32 hole,6 bolt, OLD:100MM, AXLE:108MM, black |
| Rear hub | KT-S48R,14G,32 hole,6 bolt, 32H, 14G, OLD:148MM AXLE:195MM, black |
| Rims | Tern Altas H, cargo |
| Tires | Schwalbe Pick Up, 60-406 |
| Front light | Litemove SE-9, 90 lux, 6V |
| Tail light | Herrmans H-Trace, 6-12V |
| Wheel size | 20" |
| Luggage carrier | Atlas L, 90 kg |
| Mudguards | SplashGuard, 280 mm, plastic |
| Lock | ABUS or AXA, keyed-alike with Bosch battery |
| Stand | Atlas Kickstand, for cargo |
| Weight | 29,3 kg |
| Chain cover | SKS Chainblade |
